ANPA PANEL PRODUCT SERIES
Piano and pult type operating desks
Explore the product view, technical features and standard dimensions in detail on the same page.
Standard and project-specific production
PTP series
Piano and pult type operating desks are designed for indoor use, base-plate applications and automation panels.
Product features
A1 quality galvanised and CRS sheet is used. The standard surface is RAL 7035 electrostatic powder coating; different colour options can be applied.
Sheet thickness
- Body
- 0.90–2.00 mm
- Door
- 0.90–2.00 mm
- Mounting plate
- 1.20–2.00 mm
- Plinth
- 1.50–2.00 mm
Protection and sealing
- IP protection classes
- According to project requirement
- Gasket
- Poured polyurethane liquid gasket; adhesive gasket is not used
Structural features
- Door stoppers
- Door with concealed hinge opening up to 150°
- Chrome option
- Glazed door option
On request
- Custom dimensions
- Custom colour
- Pre-punching
- Inner door
- Stainless steel option
- Glazed door
Optional accessories
- Special locks and keys
- Support plinth/feet
- Brushed cable entry plate
Standard dimension ranges
| Reference | Width options (mm) | Height options (mm) | Depth options (mm) |
|---|---|---|---|
| PTP | 600, 800, 1000, 1200 | 900, 1000, 1200, 1300, 1400 | 400, 500, 600, 700, 800 |
ORIGINAL CATALOGUE

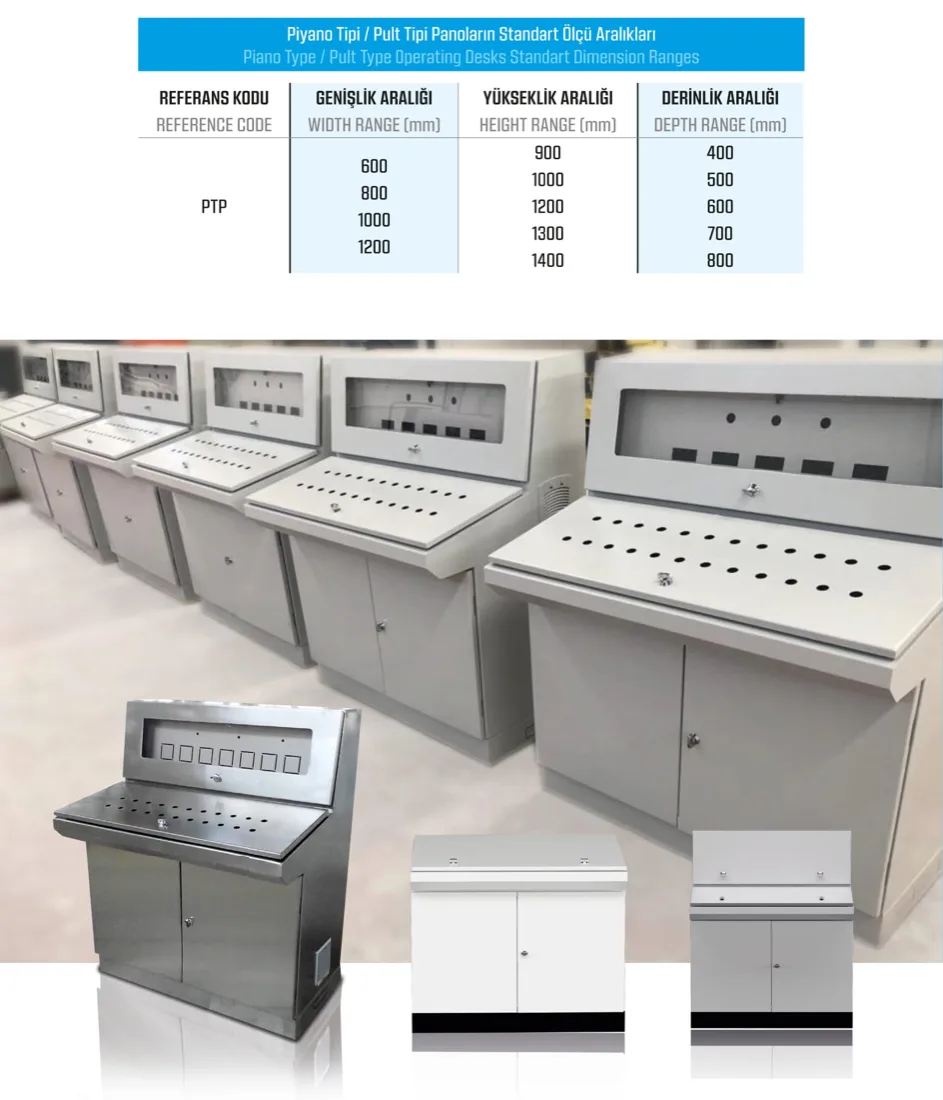

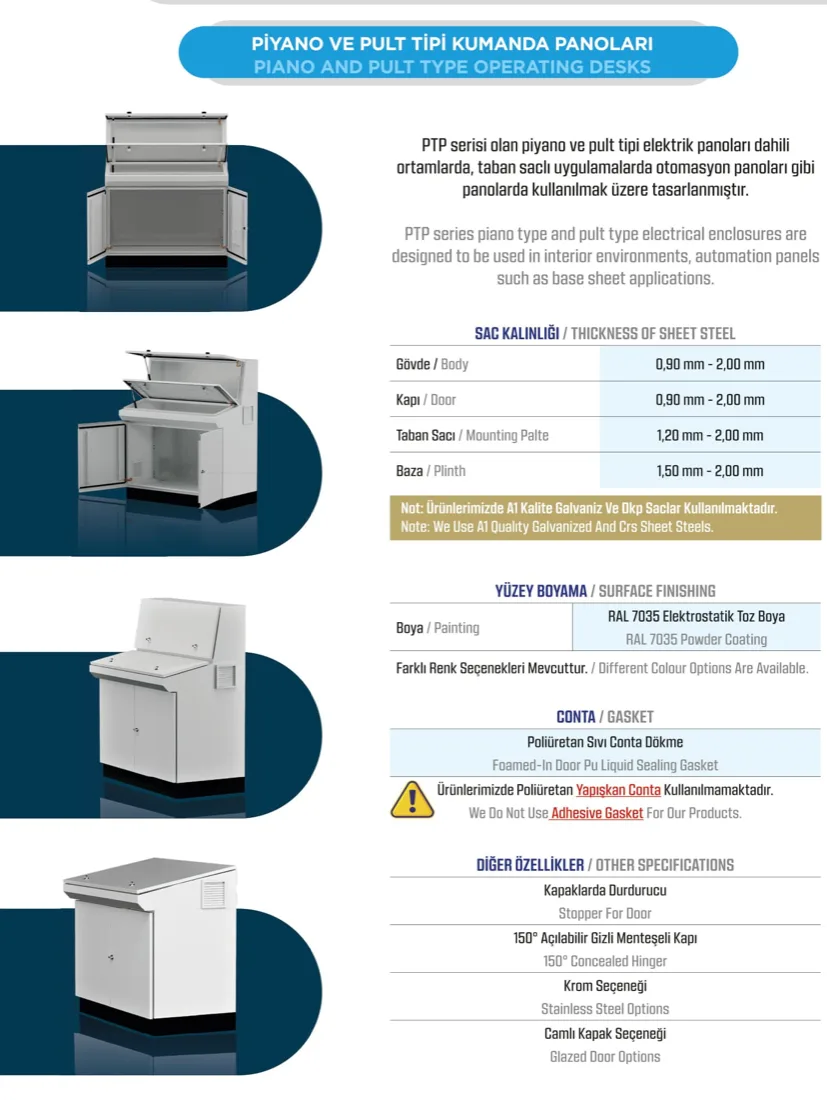

Product images and technical sheet
Click the image to view the sheet in full size.
